Detail

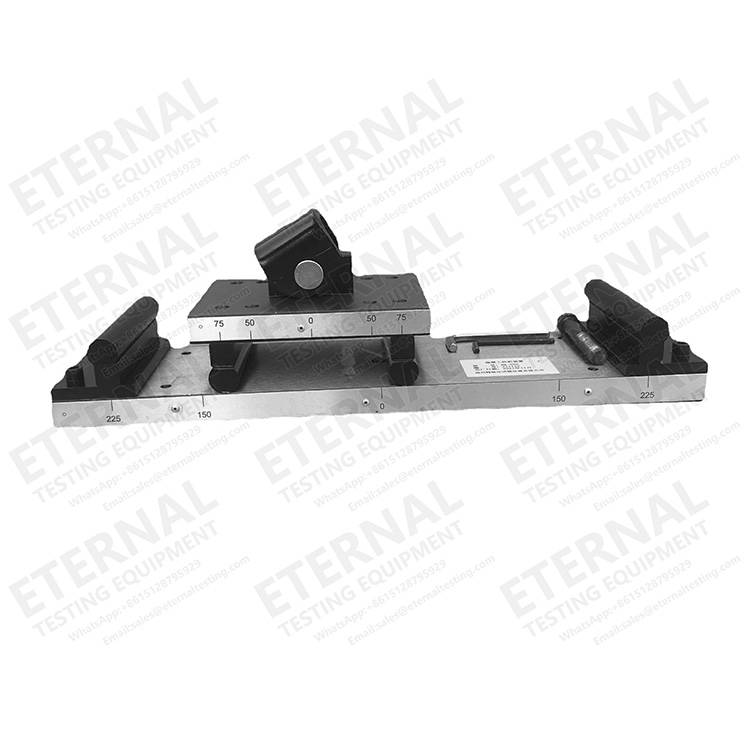

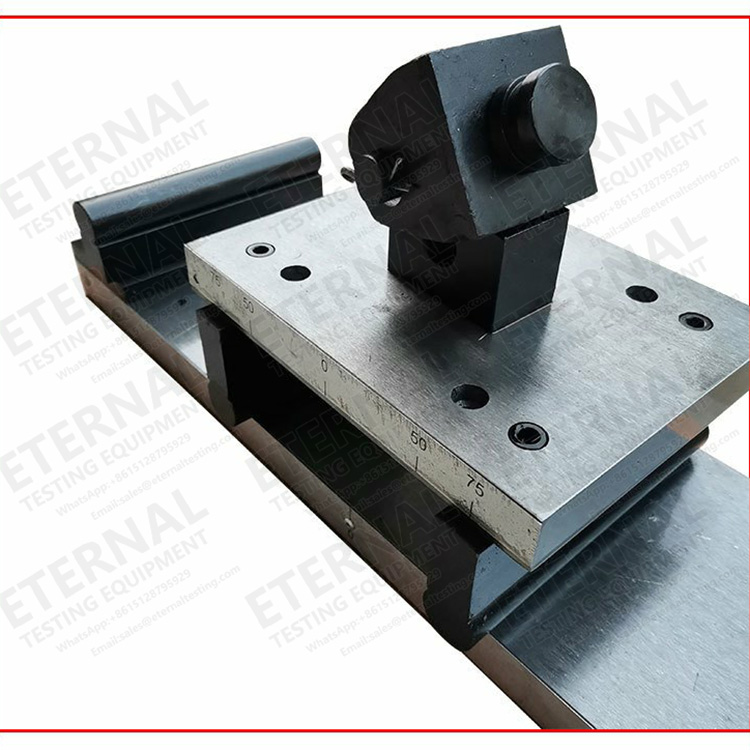

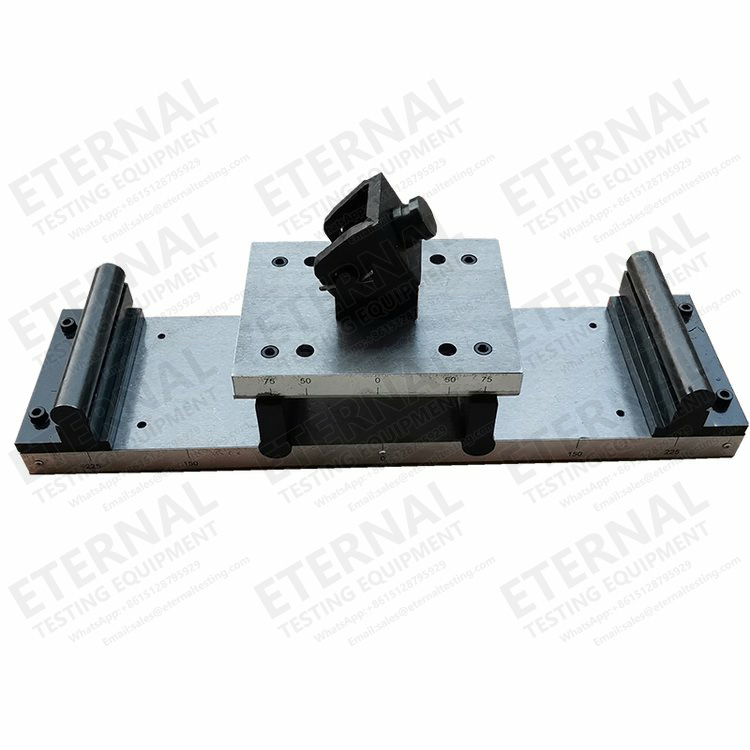

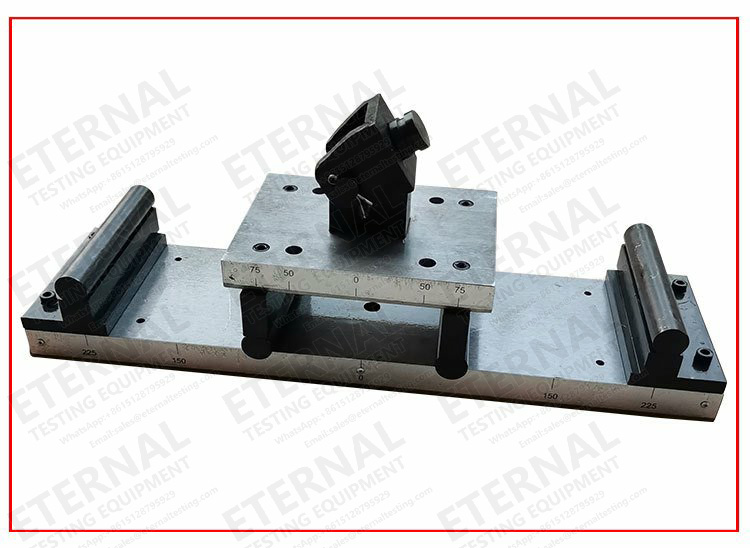

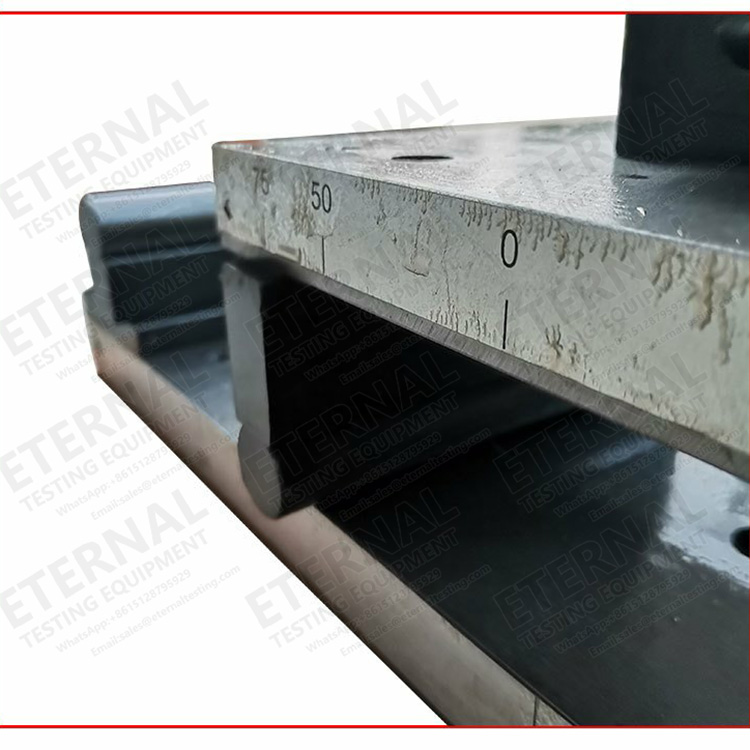

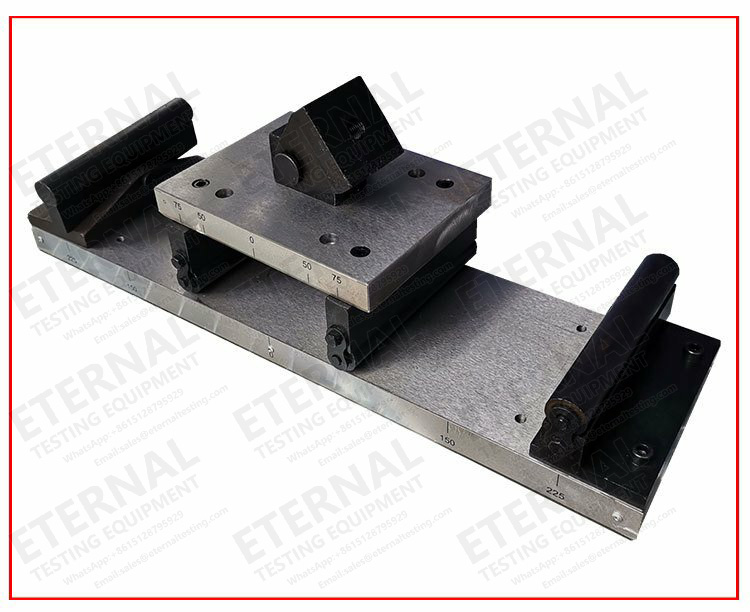

Concrete Flexure Device
Description:
Concrete anti bending device, also known as concrete anti bending fixture, is an indispensable test tool in concrete test when it is combined with the pressure testing machine. It is used for testing the flexural strength and splitting tensile strength of cement concrete.
Specification:
| Maximum bending load | 100KN |
| Maximum splitting tensile load | 300KN |
| Diameter of standard folding pinch roll | φ 30mm |
| Clear distance between upper and lower pinch rolls | 172mm |
| Applicable concrete specimen | standard 150 × 150ifty × 600 (or 550 mm) Non standard: 100 × 100 × 400 mm |
