CBR-Marshall Machine Digital Measurement
Standards:
BS 1377, 1924; EN 13286-47; ASTM D1883; AASHTO T193; NF P94-078
Description:
This machine is designed and manufactured by combining the bearing ratio (CBR) test with Marshall stability test. According to the test requirements, selecting different specimen fixtures can complete the bearing ratio (CBR) test and Marshall stability test. It can also be used for other tests that meet the requirements.
Comprises of a robust and compact two column frame with adjustable upper cross beam. The frame has 50 kN capacity.
Digital and computerized, The loading rate can be freely set from 1mm/min to 50.8mm/min.
Features:
The loading rate can be set freely.

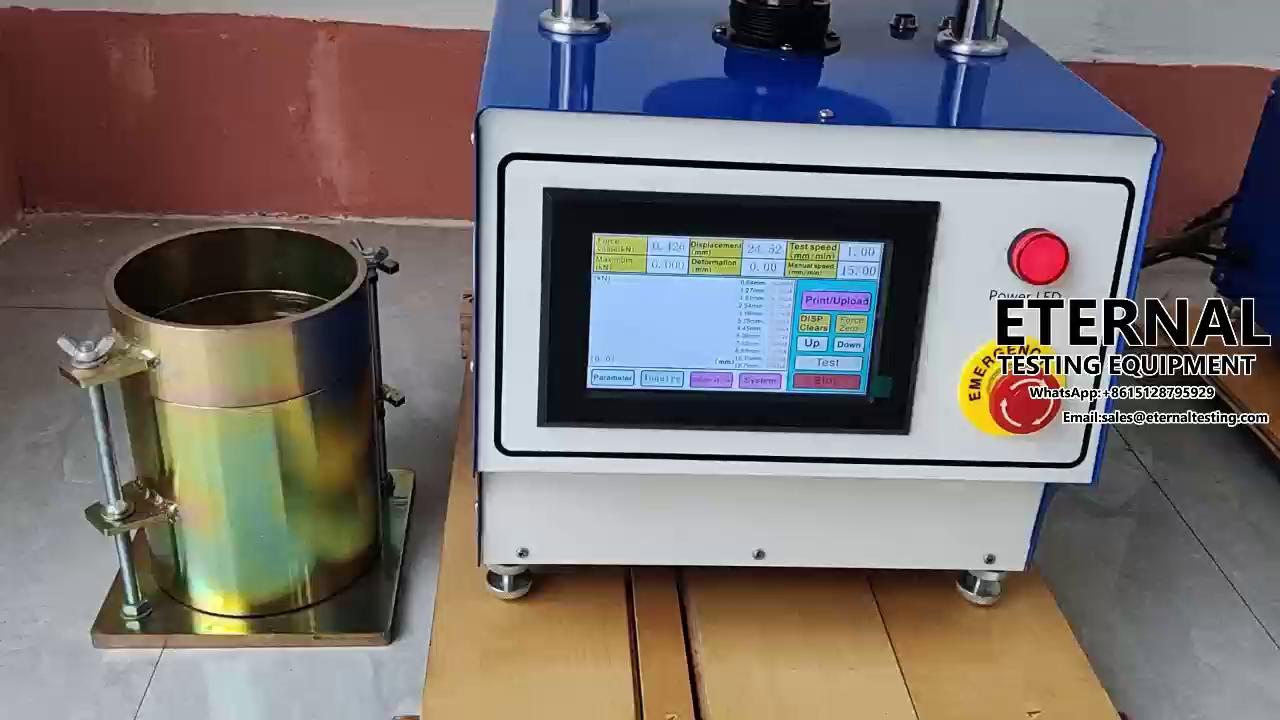

7-inch touch color screen.
The product design structure is reasonable.
Beautiful appearance.
The test operation is simple.
The results are accurate and reliable.
Specification:
| Rated pressure | 50kN, measurement error: ± 0.05% (F.S) |
| Test displacement | (0 ~ 25) mm, measurement error: ± 0.5% (F.S) |
| Loading rate | 1mm/min-50mm/min (freely set) |
| Man machine interface | 7-inch touch color screen |
| Working power supply | AC (220 ± 10%) V 50Hz; |
| Power consumption of the whole machine | 1500W |
| Distance between two columns | 220mm |
| Overall dimension | 360*470*900mm |
| Weight | 120kg |
