CBR Test Machine Automatic CBR Tester

Automatic CBR Tester

Standards:

BS 1377, 1924; EN 13286-47; ASTM D1883; AASHTO T193; NF P94-078

Description:

CBR Test Machine is suitable for test of soils and mix materials(the grain size of the soil is less than 40mm) compacted with CBR mold so as to confirm the bearing loading ability of pavement, roadbed subcrust as well as material layer of the roadbed to be designed.

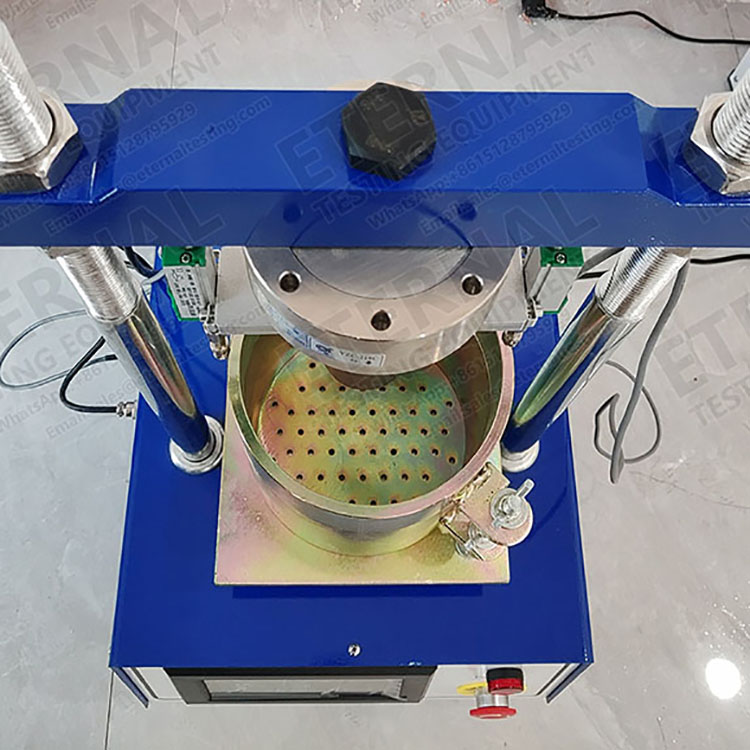

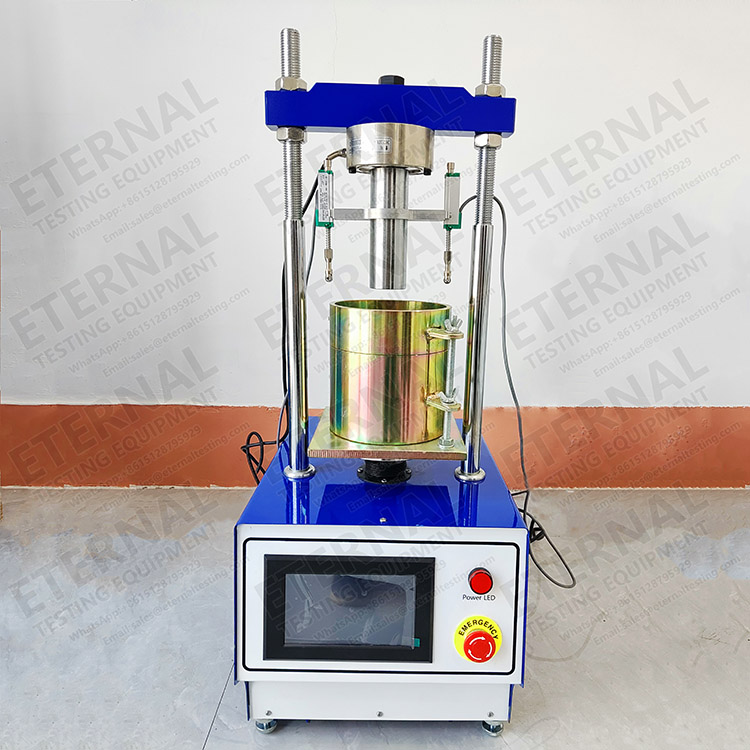

Composed of a robust and compact two column frame with adjustable upper crossbeam driven by an electromechanical   ram with a maximum capacity of 50 kN and a data acquisition and processing system.Load the penetration piston into the soil sample at a constant rate to measure the applied load and piston penetration at predetermined intervals. The test speed is 1.27 mm/min. for ASTM/EN/AASHTO/BS/NF tests.

Rapid adjustment of the platen is also provided by up and down buttons which are located on the front panel of the machine. Supplied completewith a 50 kN load cell, penetration piston, linear potentiometric displacement transducer .

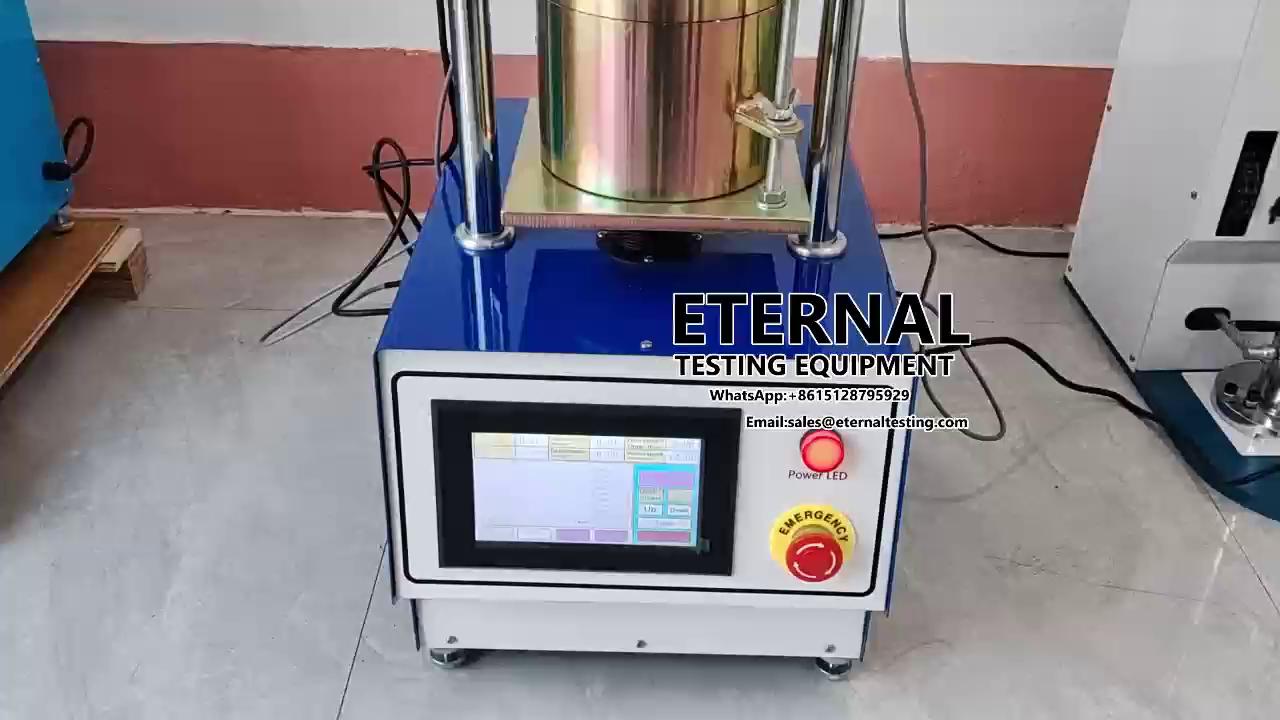

The control unit has easy to use menu options.Control of machine, acquisition of load and displacement data in real time are provided by the unit.It displays all menu option listings simultaneously, allowing the operator to access the required option in a seemless manner to activate the option or enter a numeric value to set the test parameters and see all the data while the test running.

Features:

Wheel spoke sensor

Can make the test with displacement control

Real time display of test graph.

Load cell and displacement sensors

Can control second frame

Calibration function for channels.

Programmable digital gain adjustment for load-cell and Potentiometric sensors, voltage and current transmitters

Closed-loop PID for steady pace rate

Digital unit saves the load value at user defined displacement values

The load corresponds to the displacements corrected Respect to the linear region of the data has also saved

CBR automatically calculated and saved

Specification:

CBR Test Machine comprises:

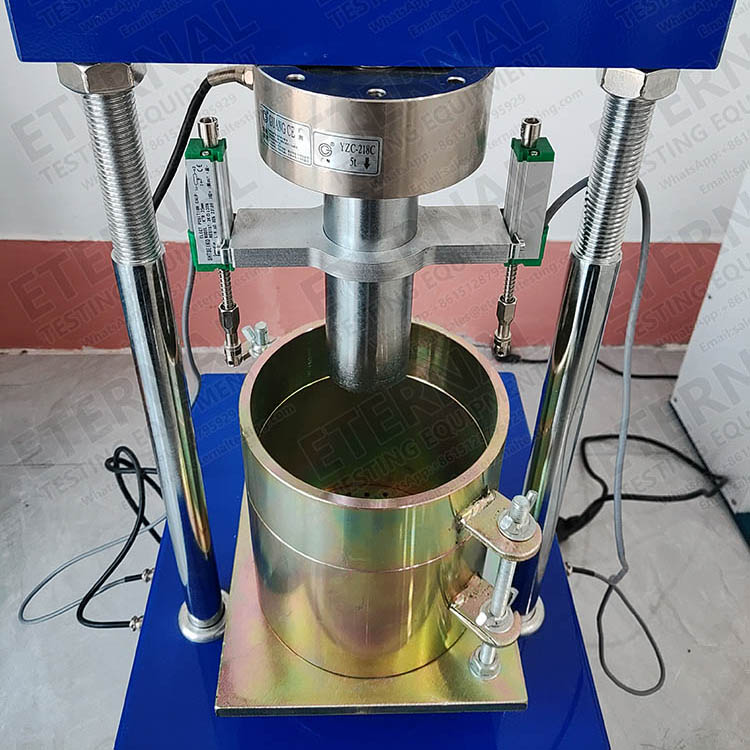

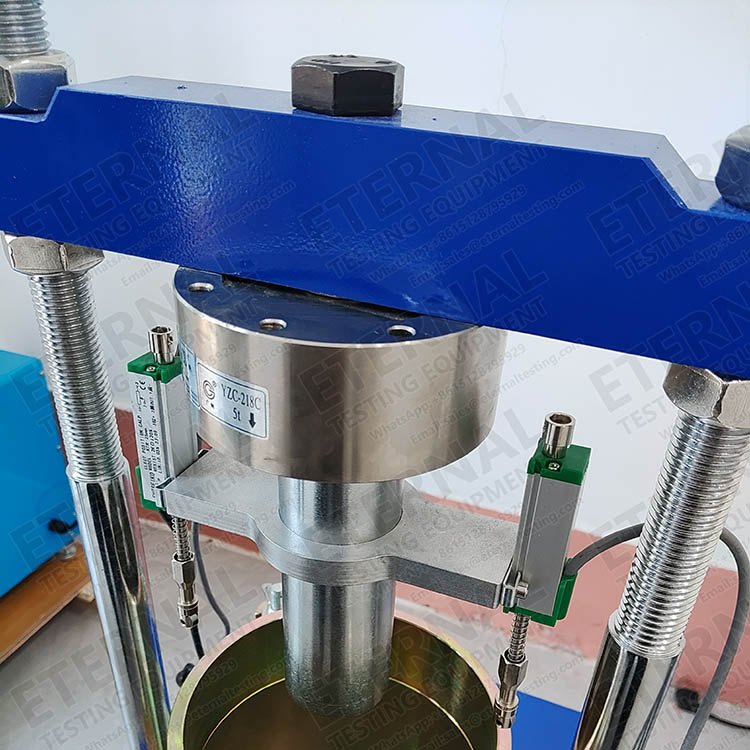

Load Cell, 50 kN

Penetration Piston

Linear potentiometric displacement transducer

Computer Software

LAN Connection Cable
