Triplex Consolidation Apparatus Low Pressure
Description:
This product is used for conducting soil compression tests, measuring the relationship between soil deformation and pressure or porosity and pressure, as well as the relationship between deformation and time, in order to calculate the unit settlement of soil, compression coefficient and index, rebound index, compression modulus, consolidation coefficient, etc. The measurement items should be determined according to the engineering needs. (Executive standard: 50123-2019 GB/T0137-1993)
Features:

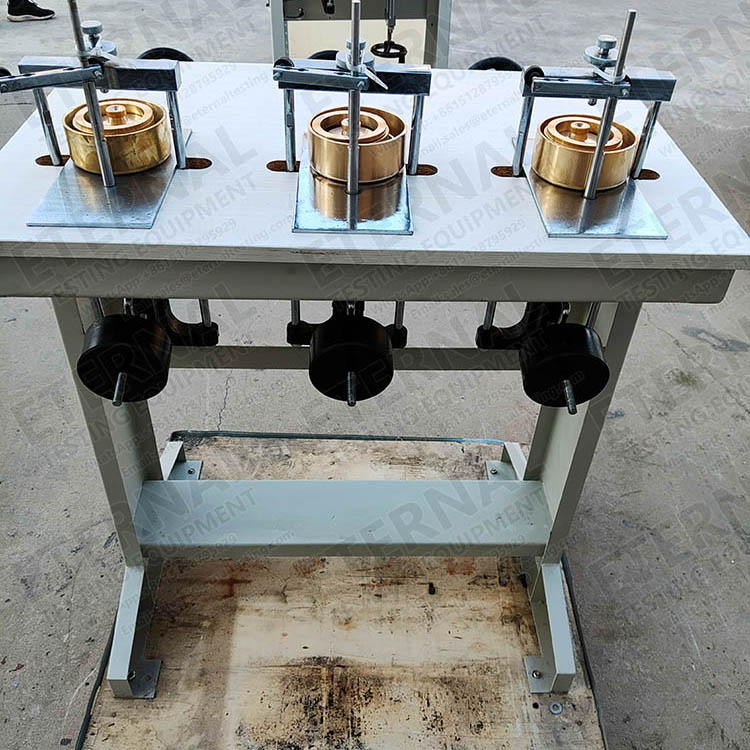

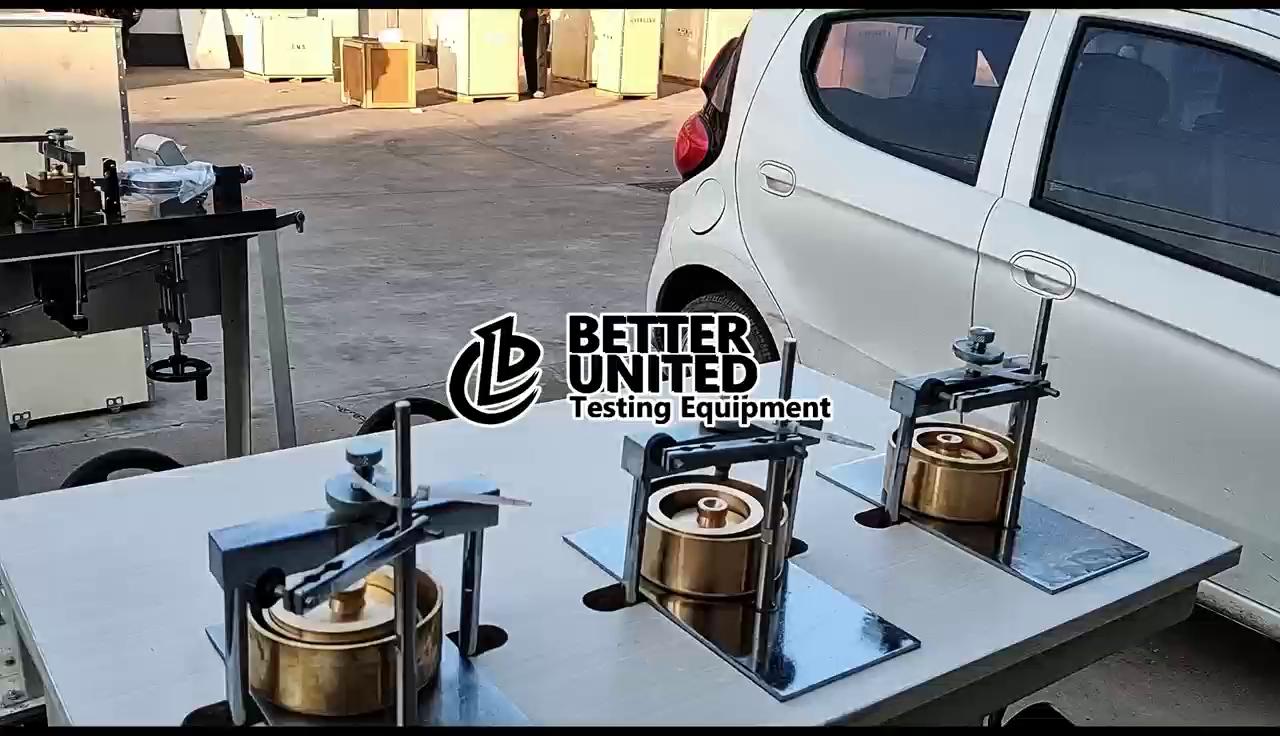

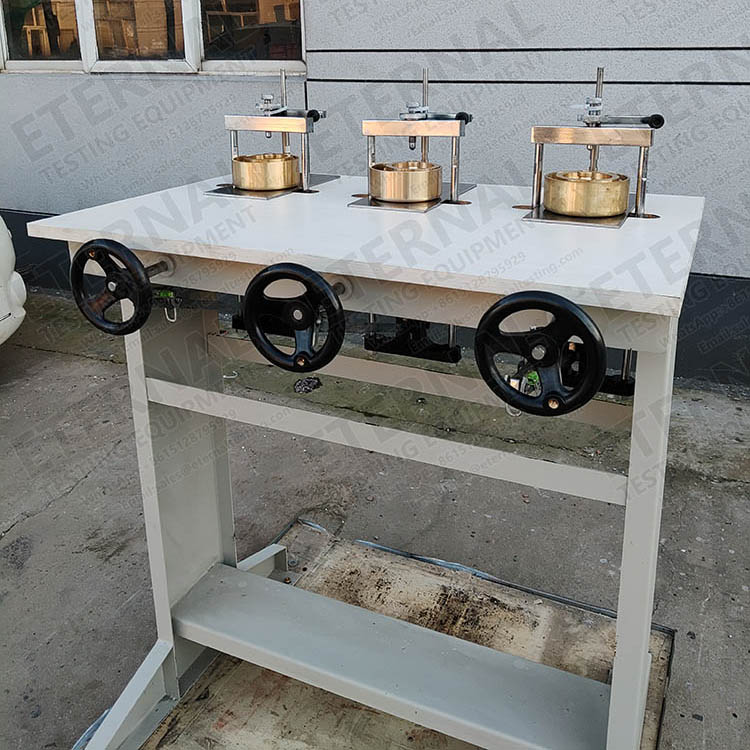

1. This machine is a triple form single bar consolidation instrument that can perform three sets of tests simultaneously.
2. The instrument uses a balance hammer to adjust the lever to a horizontal line, increasing the accuracy of the test.
3. The compression container test mold is made of pure copper material, which is rust resistant, corrosion-resistant, and durable.
4. Equip standard loading weights, load step by step, and compact and solidify the soil sample.
5. The instrument is equipped with table fixtures.
Specification:
The sample area is divided into | 30cm ² and 50cm ² |
Pressure range | 30cm ² (12.5-800) Kpa/50cm ² (12.5-400) Kpa |
Soil sample height | 20mm |
Leverage ratio | 1:12 and 1:10 |
Net weight of the instrument | 85kg (excluding weights) |
Dimensions | 685 * 800 * 1100mm |
