Concrete Rebound Test Hammer universal

Brand Name BETTER UNITED
Model Number BTU-HT225
Place of Origin China
Customized support OEM, ODM, OBM
Warranty 1 Year
Delivery Time 5-8 work days
Use Non destructive test
Price Negotiable
Consult immediately
Detail

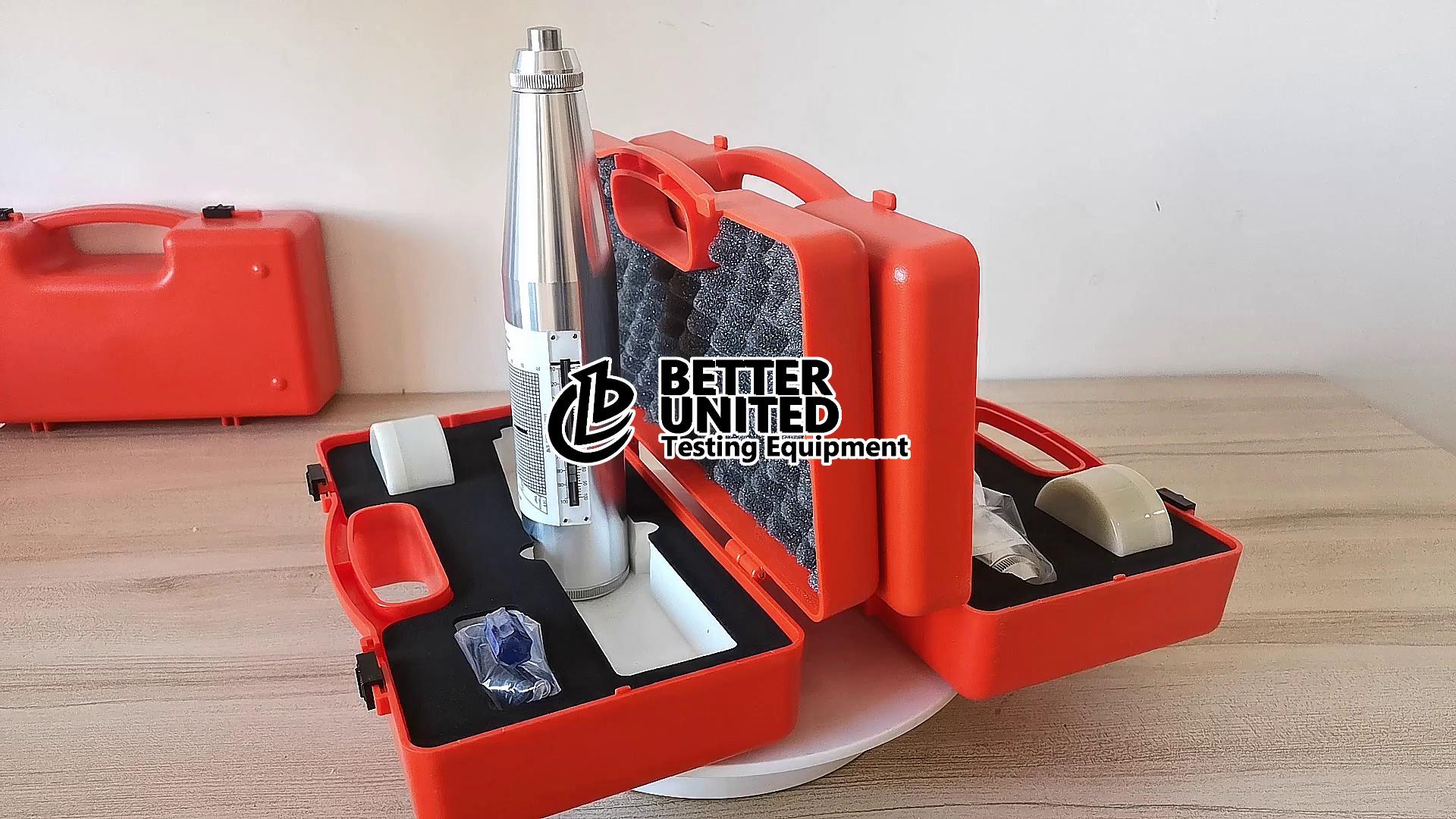

Concrete Rebound Test Hammer universal




Standard:

EN 12504   PART 2   ASTM C805   DIN 1048   BS 1881:202   NF P18-417


Description:

HT-225 applicable to detect strength of high-rise building components,   Bridges and concrete member (plate, beam, column, bridge).

According to the standard acceptance evaluation of concrete strength.Suitable for finished concrete structures and buildings having strength resistances from 10 to 70 N/sq.mm.   Suitable for finished concrete structures and buildings having strength resistances from 10 to 70 N/sq.mm.Has aluminium frame and thanks to its very accurate manufacture processing and selected components ensures high precision test results in the time.Supplied complete with calibration curve chart in N/mm² (Mpa) values, abrasive stone, carrying case.


Parameters:

Model
HT-225
Impact Energy
0.225 mkg (2.207 Joule)
Measurement Range
10 to 70 N²
Weight
2.2Kg
Casing Dimension (mm)
320 (L) x 190 (W) x 90 (H)
Accessories
Grinding Stone
