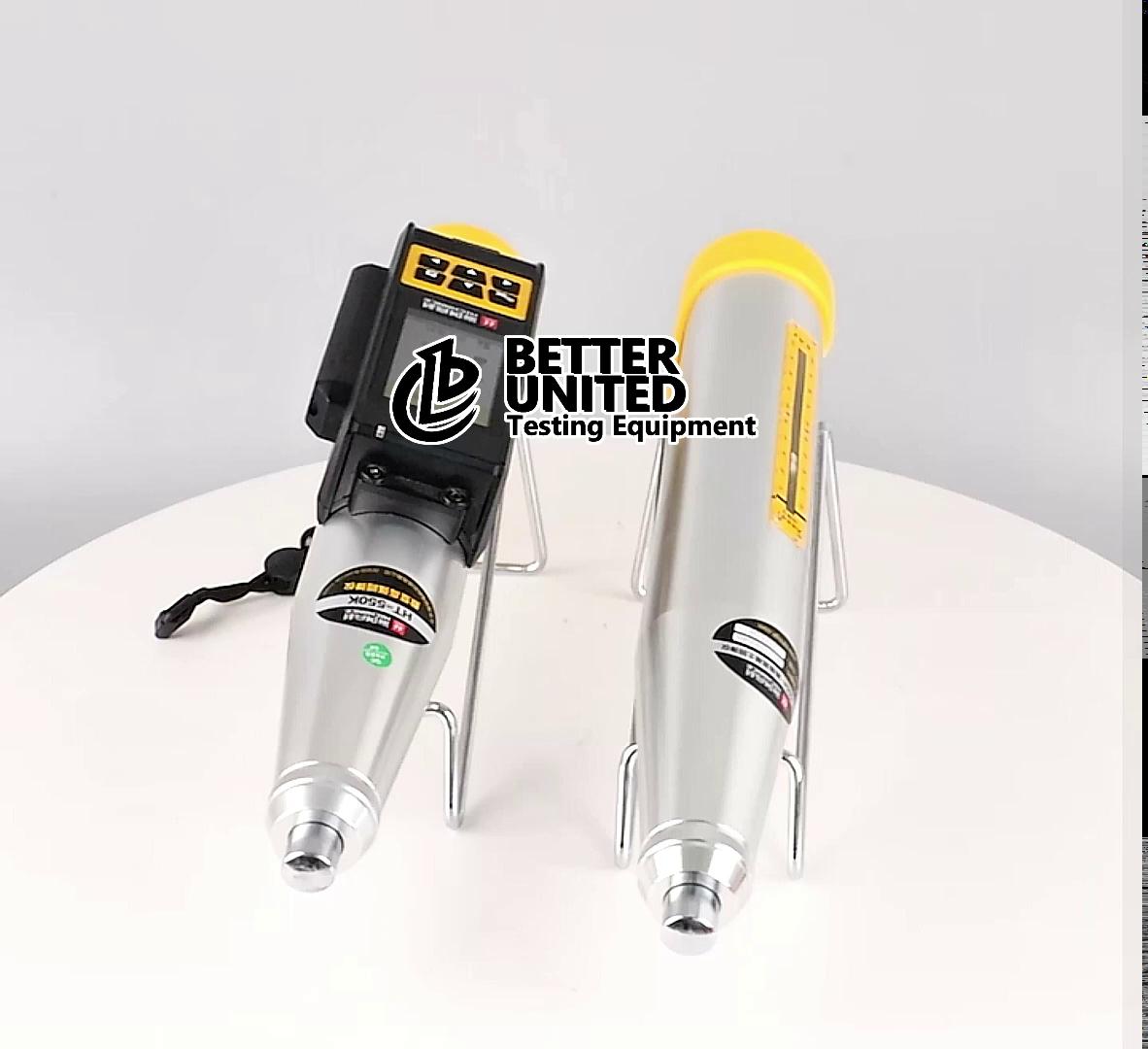

Concrete Rebound Test Hammer HT-550High Strength

Concrete Rebound Test Hammer HT-550High Strength

Mechanical model

1. Application areas:

The compressive strength of concrete used for structural engineering high-rise building components, bridges, and truss components (plates, beams, columns, bridges) is usually applicable to concrete structures or components with a strength of 50-90MPa.

2. Functional features:

Imported high toughness alloy steel springs have good elasticity and are more resistant to fatigue;

High precision CNC precision machining refined movement ensures more stable rebound value;

The pointer axis is smooth, with uniform friction and high measurement stability;

Precision ground spherical zero adjustment screw matched with high-strength hook, with smoother rebound firing, wear-resistant and less prone to bounce;

Adopting high-strength hard aluminum body shell, it is lightweight and resistant to pressure and drop;

Customized protective sleeve handle for more comfortable rebound operation;

Professional data processing software that supports raw record input and facilitates the issuance of testing reports.

3. According to the standard:

GB/T 9138-2015 Rebound Tester

JJG 817-2011 "Rebound Tester" Verification Regulations

JGJT 294-2013 Technical Specification for Strength Testing of High Strength Concrete

4. Technical indicators:

Standard energy: 5.5J

Working length of rebound spring: 86mm

Elastic impact tension spring stretching length: 100mm

Elastic spring stiffness: 1100 ± 40N/m

Steel drilling rate setting: 83 ± 2

Impact radius of the impact rod on the spherical surface: 18 ± 1mm

Instrument quality: 1.28kg

Specification: Φ 54 × 350mm

Digital display model

1. Application areas:

The compressive strength of concrete used for high-rise building components, bridges, and concrete components (slabs, beams, columns, bridges) in structural engineering is usually applicable to concrete structures or components with a strength of 50-90MPa.

2. Functional features:

Built in Bluetooth chip, can connect to Haichuang mobile app to upload rebound data in real time;

Optional Bluetooth printer, on-site printing of original records and test results;

2.8-inch touch LCD screen, diversified input methods, simple interface, easy to operate;

Support remote upgrades, synchronize industry standards with curve updates, and customize for users exclusively;

PC specific analysis software, easy to process data result analysis and generate detection reports.

3. According to the standard:

GB/T 9138-2015 Rebound Tester

JJG 817-2011 "Rebound Tester" Verification Regulations

JGJT 294-2013 Technical Specification for Strength Testing of High Strength Concrete

Industry and some local regulations for strength testing compressive strength range: Industry standard: 60-80MPa

Fujian standard: 60-90MPa

4. Technical indicators:

Input methods: touch, button

Input methods: Chinese, English

Data processing: Automatic correction, calculation, and strength result estimation of data based on specifications

Display mode: 2.8-inch touch LCD screen (400 × 240 pixels)

System capacity: 1000 components, maximum measurement area of 100 components

Power supply method: rechargeable, built-in 3200mAh high-capacity imported lithium battery

Automatic shutdown: can be set to a maximum of 120 minutes

Whole machine volume: 366mm × 216mm × 110mm

Nominal kinetic energy: 5.5J

Elastic spring stiffness: 1100 ± 40N/m

Stretch length of spring for impact: 100 ± 0.5mm

Elastic impact tension spring working length: 86 ± 0.5mm

Consistency error of indication: ≤± 1 difference between the pointer reading of the mechanical rebound gauge and the reading on the instrument screen

Steel drill rebound value: 83 ± 2
