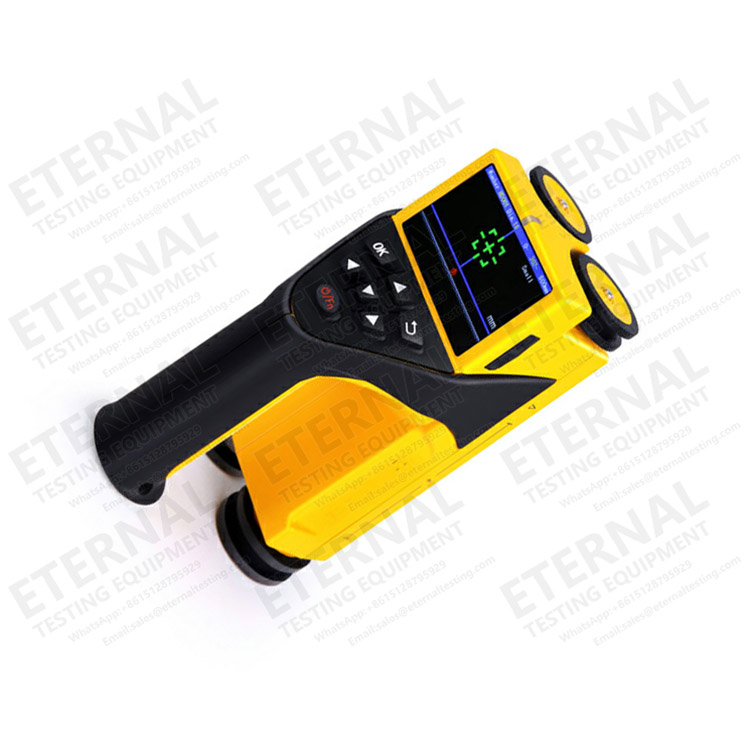

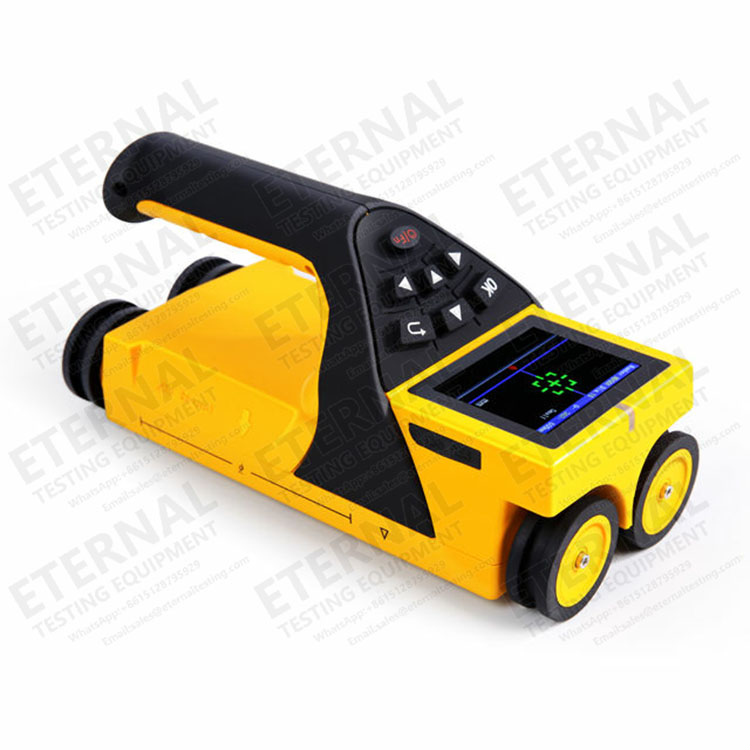

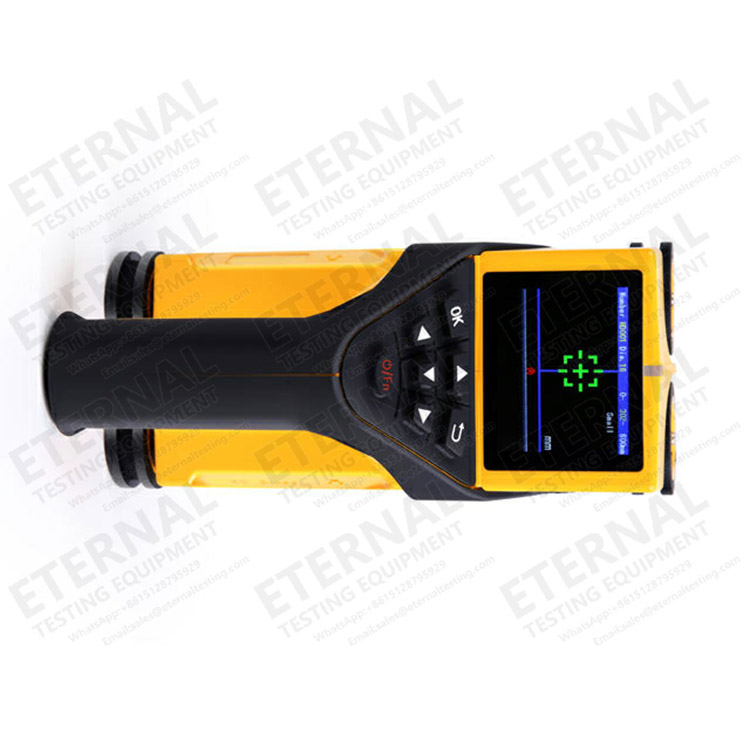

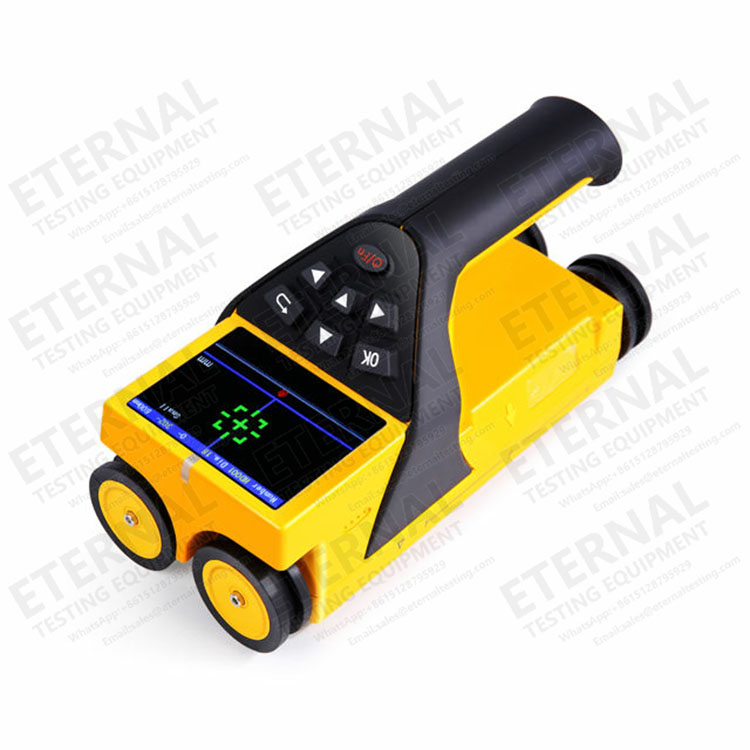

Concrete rebar scanner

Concrete rebar scanner

Standard:

BS 1881:204   DIN 1045

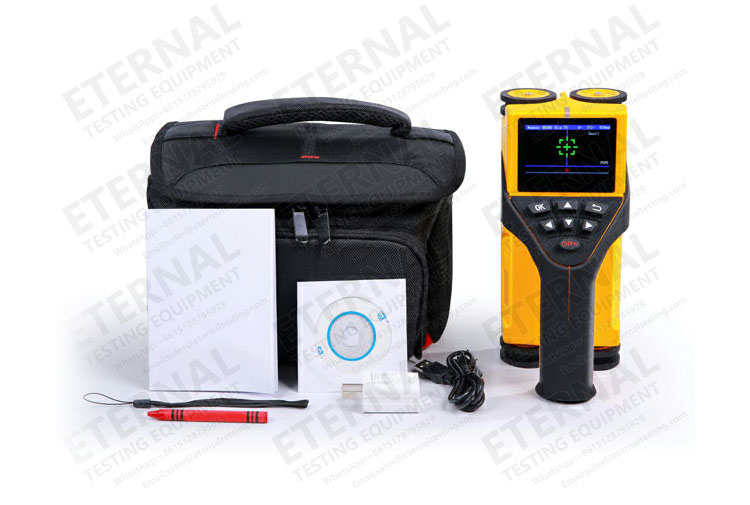

Description:

ZD310 Integrated Rebar detector are mainly used for detecting the internal reinforcement position, the protective layer thickness, reinforcement spacing and diameter of rebar. It can accurately draw the distribution map of the whole rebar, to provide test data with high precision and high speed; the integrated structure of the host and the sensor coil, making it is convenient and quick when carrying and field operation ; It is characterized in coil structure design, faster speed, higher accuracy, stronger resolution.

Functions:

1. Accurately measure the thickness of protective layer of rebar;

2. Locate the position, trend and distribution of steel bars;

3. Measure the protective layer of steel bar and estimate the diameter of steel bar;

4. Storage, view and transmission of detection data.

5. The detection mode is intuitive, accurate, accurate display of steel bar position, spacing, protective layer thickness in the same screen;

6.The thickness measurement is completely realized. During the measurement process, pages can be turned back and forth, data and graphics can be viewed, and the test data can be deleted at any time.

7.Single handing machine, operation design and four wheel positioning method, equipped with high strength wear-resistant tires, easy to protect the wear and tear of the detector;

8. Analysis software can produce two-dimensional plan view and 3D three-dimensional view.

9. JGJ detection mode realizes 1-6 repeated tests of a single steel bar, and automatically calculates the average value.

Features:

1.2.8 inch high resolution color LCD screen (320 x 240 pixels), whether in indoor or outdoor, any situation can be clearly visible detection data;

2.Multi-coil structure design, faster, higher precision, stronger resolution;

3.Using USB mode data transmission and charging, you can quickly upload the stored data to the computer through the USB.

4.With built-in high-capacity lithium battery, the power consumption is low, in the case of battery is full the standby time is about 16 hours;

5.Data management mode in the data storage, view, delete and other functions, can store about two hundred thousand rebar measuring point data;

6.The problem of reinforcing steel bar leakage is solved by using super dense tendon resolving power;

7.Select configuration Standard test block which can be configured with special and unique design;

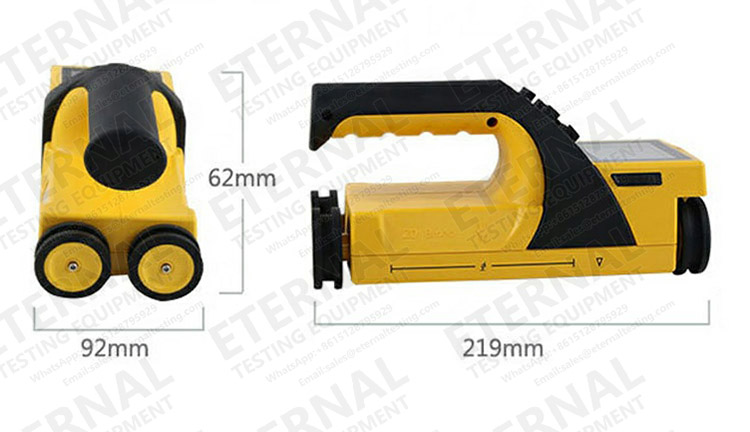

8.Using the host and sensor coil integrated design, compact size, light weight, easy to carry;

9.Adjacent steel bar intermediate position real-time judgment, indicating light prompt, can avoid around the steel bar, easy drilling coring;

10.The instrument bag is shockproof, has a protective lining inside, and is equipped with a waterproof cover for easy carrying;

11.Equipped with medium and large steel bar detection software, it is convenient for professional data analysis, data processing and generating complete report in PC.
