Detail

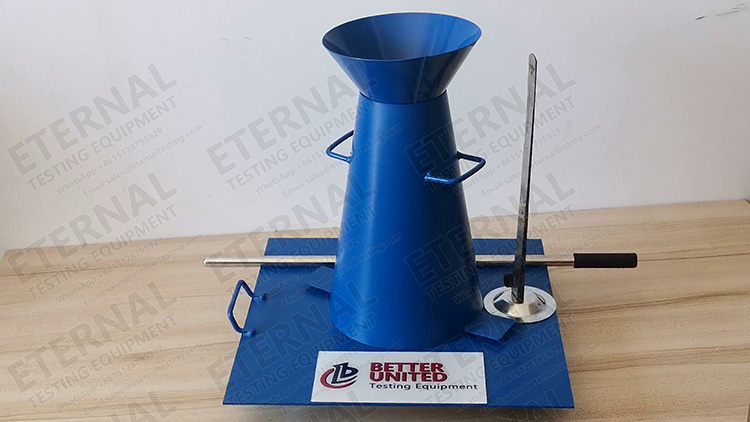

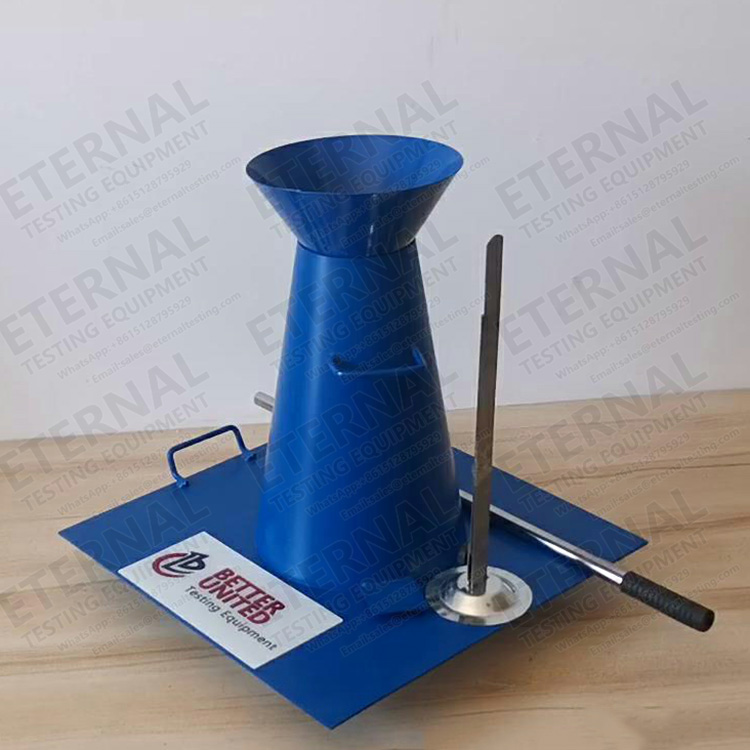

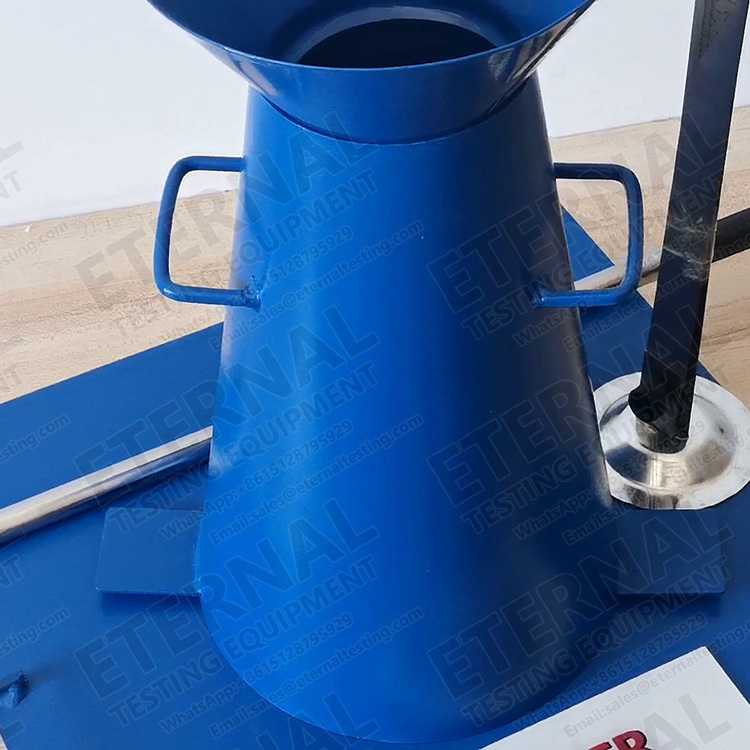

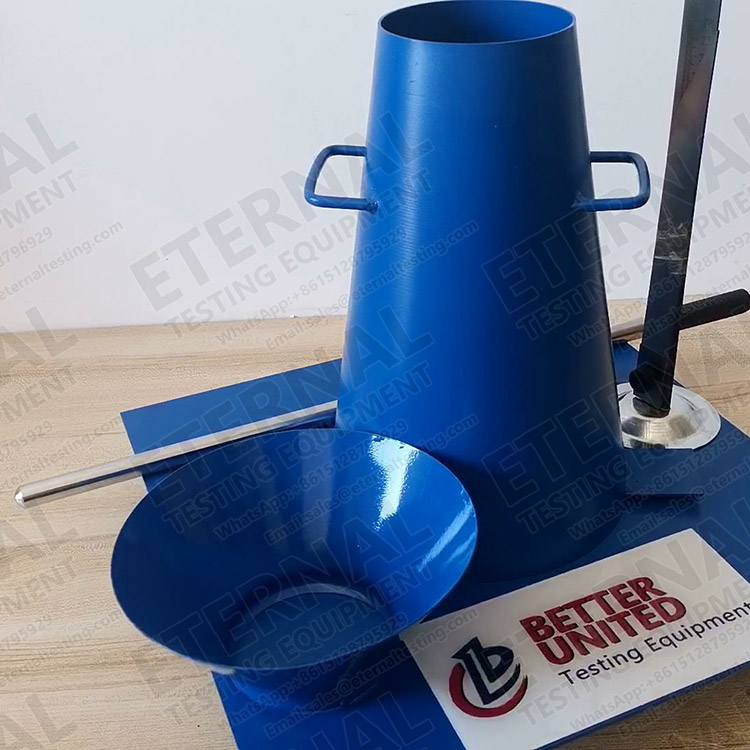

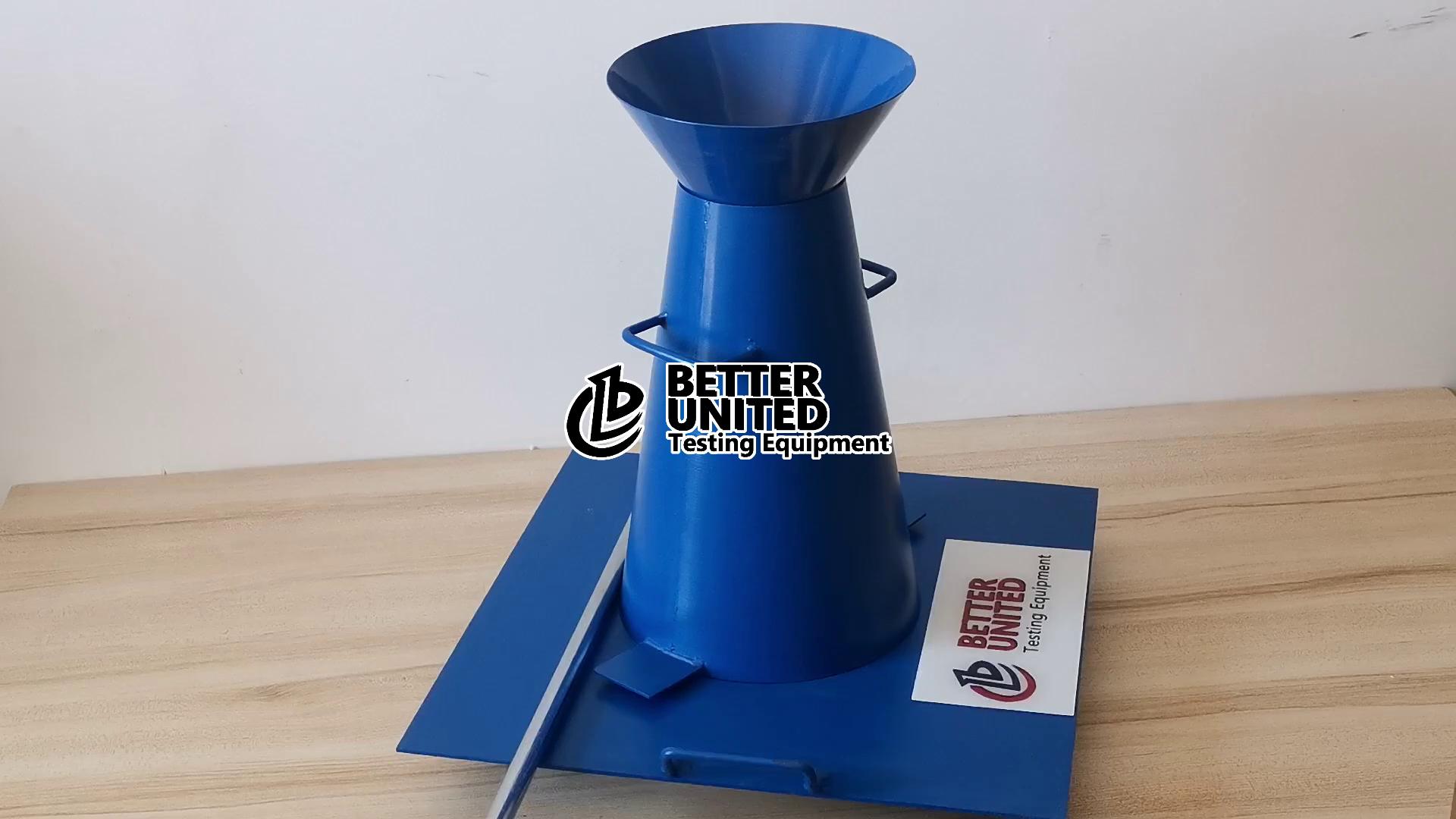

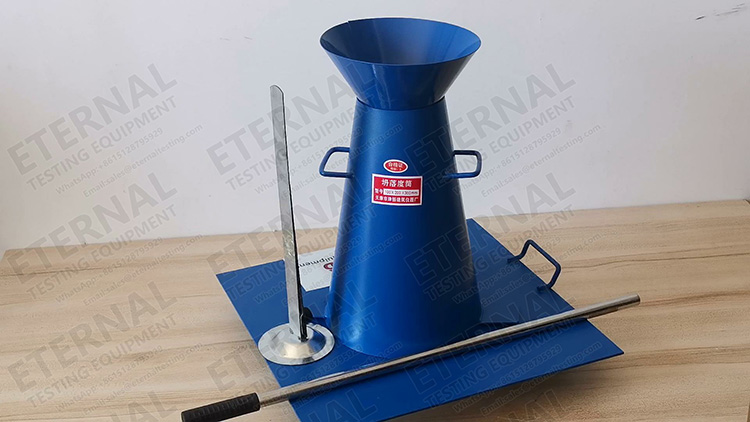

Slump Cone Set, Painted Steel
Standard:
EN 12350-2 EN 12350-8 ASTM C143 BS 1881:102 AASHTO T119 NF P18-305
Description:
The test apparatus is carried out by fi lling the slump cone with freshly mixed concrete which is tamped with a steel rod in three layers. The concrete is levelled off with the top of the slump cone, the cone removed, and the slump of the sample is immediately measured.
To ensure that concrete achieves its maximum possible strength and yet retains its ease of placing on site, it is essential that the design of the concrete mix, in relation to the water-cement ratio and workability, is closely controlled.
Specification:
| Product Name | Slump cone set Painted steel |
| Base plate | Painted steel |
| Slump Cone | Painted steel Slump Cone Size:100×200×300mm |
| Funnel | Painted steel |
| Tamping Rod | diameter 16mm,length 600mm, with one round end. |
| Steel ruler | with vertical supporting column |
| Scoop | stainless steel / aluminum |
Optional:Sprayed steel, Stainless steel, Painted steel, Galvanized steel
