Detail

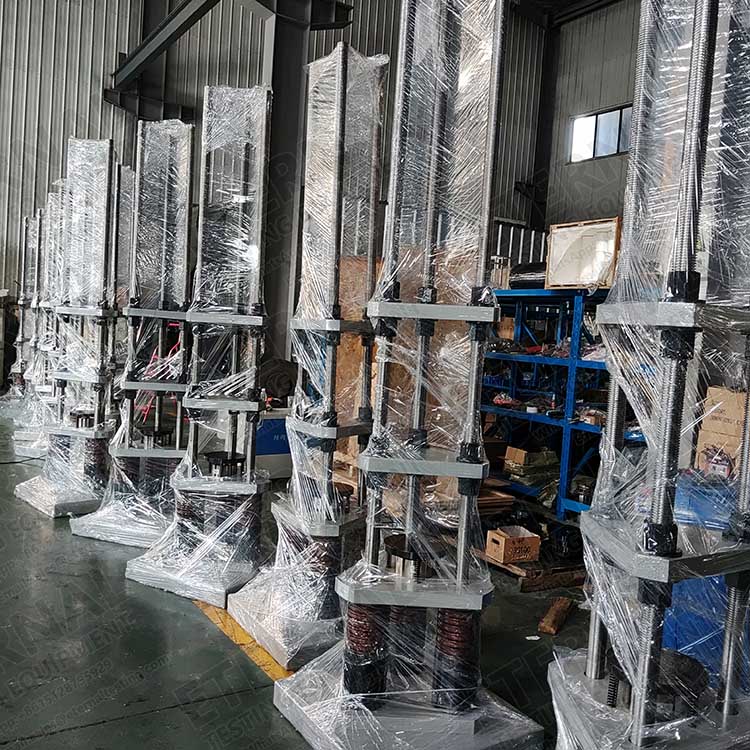

Concrete Creep Testing Machine
Description:
Concrete Creep Testing Machine is designed to determine of concrete cylinder and cuboid parts under constant pressure load over time, ie, the creep deformation of concrete. It is applicable for concrete creep deformation test under single-direction pressure at constant temperature in a humid-free environment.
Specification:
| Model BTU-500 | |
| Maximum testing force | 500KN |
| Measurement range | 0-500KN |
| Relative reading error | ±1% |
| Spring height | 300mm |
| Spring compression stroke | 52mm |
| Maximum distance between upper platenand lower platen(Compression space) | 1500mm |
| Power supply | 380V,50Hz |
| Load machine dimension | 300mm×200mm×1150mm |
| Inside dimension | 1000mm×600mm×1000mm |
| Net weightabout | 800kg |
| Model BTU-1000 | |
| Maximum testing force | 1000KN |
| Measurement range | 0-1000KN |
| Relative reading error | ±1% |
| Compression space | 1200mm |
| Specimen dimension | Dia.150×Height300mm |
| Max specimen quantity | 3pcs |
| Spring type | Disc spring |
| Spring compression stroke | 50-52mm |
| Maximum distance between upper platenand lower platen(Compression space) | 2500mm |
| Power supply | 220V,50Hz |
| Package dimension | 750mm×750mm×2800mm |
| Gross weight | 1200kg |
