Brand Name BETTER UNITED
Model Number BTU-KVA
Place of Origin China
Customized support OEM, ODM, OBM
Warranty 1 Year
Delivery Time 5-8 work days
Use Asphalt Bitumen Test
Price Negotiable
Consult immediately
Detail

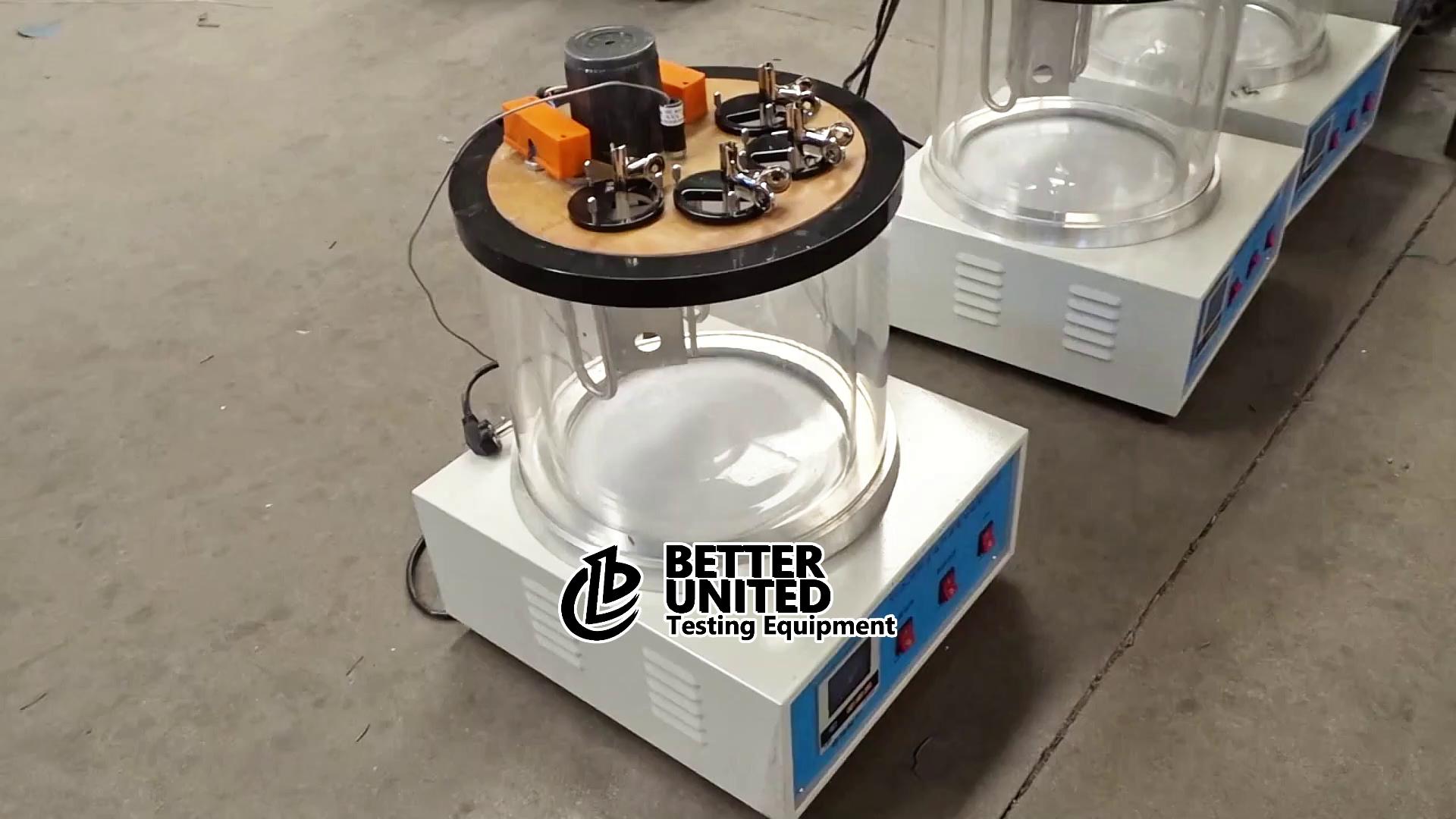

Kinematic viscosity apparatus



Description:

1.This method is applicable to the determination of the kinematic viscosity of viscous petroleum asphalt, liquid petroleum asphalt and the residue after distillation by capillary viscometer.2. Unless otherwise specified, the test temperature is 135 ℃ (viscous petroleum asphalt) and 60 ℃ (liquid petroleum asphalt). In order to obtain the viscosity-temperature curve of viscous petroleum asphalt at high temperature, 120 ℃, 150 ℃ and 180 ℃ should be used as the test temperature when determining the iso-viscosity temperature as the construction temperature.3. T 0620-2000 Asphalt Kinematic Viscosity (Capillary Method) in the industry standard JTG E20-2011 Test Specification for Asphalt and Asphalt Mixture in Highway Engineering


Specification:

Temperature control range room temperature
- 135 ℃
Temperature control accuracy
± 0.1 ℃
Heating power
auxiliary heating, 1000 W temperature control heating. 600 W
Working voltage
220V
External dimension
550x500x680mm
Net weight of instrument
46kg
