Slow Freeze Thaw Test Chamber
Description:

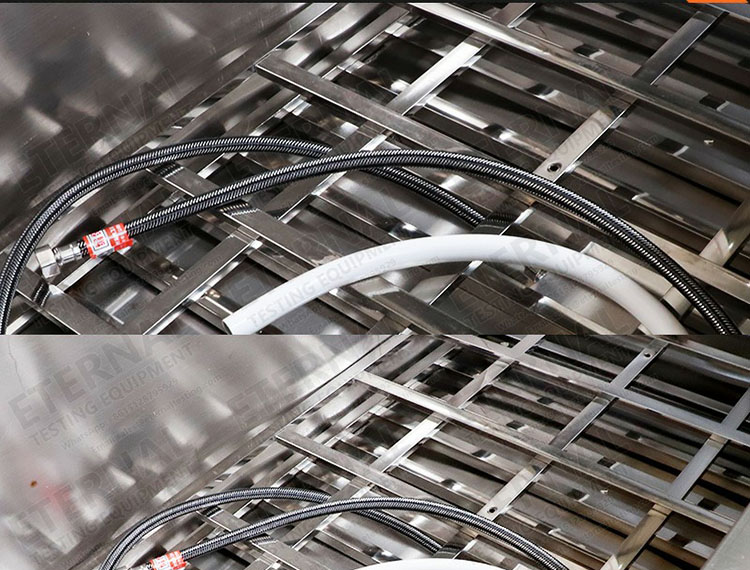

It is highly automatic and efficient, and can be configured with the upper computer software to realize remote monitoring, and can automaticallycomplete the freezing and thawing cycle according to the preset parameters. The controller is a dot LCD display. Before leaving the factory, different temperature curve data have been set according to the properties of various building materials. Users only need to directly select the corresponding curve when setting. Colleagues also have two sets of user-defined parameters, which can be upgraded for the requirements of other standards. Its inner liner is made of 304 stainless steel plate, and all refrigeration components are imported. Combined with our years of experience and technology in freeze-thaw research and development, this equipment is characterized by low noise, low energy consumption, and stable performance.Concrete Testing Equipment
Working conditions:
1. The ambient temperature is 5 ℃ - 25 ℃.
2. The ambient relative humidity shall not be greater than 85%.
3. There is no vibration, corrosive medium and strong electromagnetic interference around.
4. Place on a firm and flat ground.
5. Power supply AC220V ± 5% (AC380V ± 5%) 50Hz user selectable.
6. The distance between the equipment and the wall is more than 0.5m.
Specification:
The quality of 40 standard red bricks or fly ash bricks, or other irregular stones and concrete that can be put into thebox shall not exceed 80KG. | |
| Cooling rate | the box temperature is close to but not more than 20 ℃/h |
| Large set cycle times | 1-1000 times of automatic cycle control |
| Power consumption | 5.5KW |
| Temperature measurement accuracy | ± 0.5 ℃ |
| Box limit temperature | - 25 ℃ - 50 ℃ |
| Overall dimension of equipment | 1700mm long × 1000mm wide × 1310mm high |
| Weight | about 270Kg |
| Internal dimension | 910 * 600 * 350MM |
